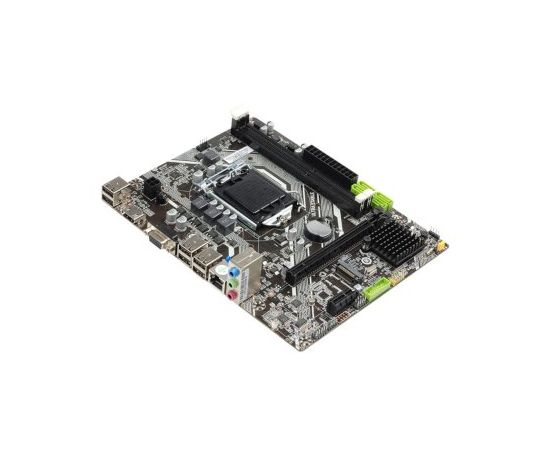

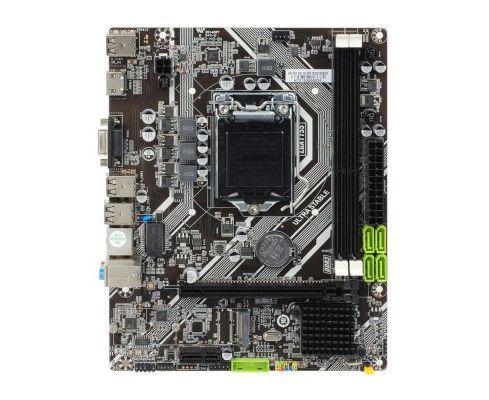

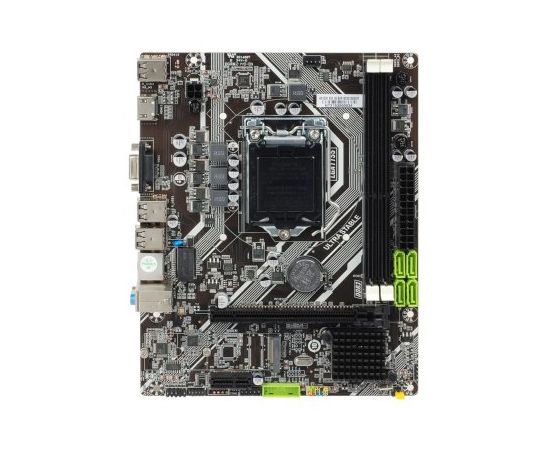

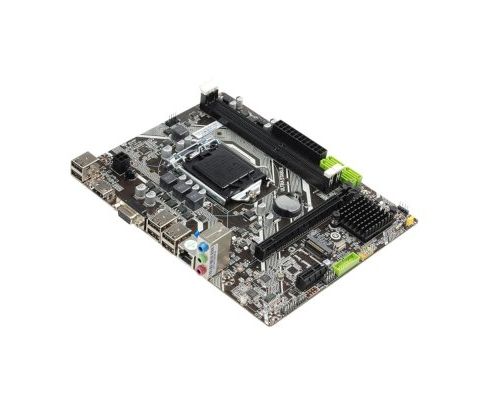

Материнская плата Esonic H61DA (1155)
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Характеристики Esonic H61DA:
Processor: Support LGA1155 Intel i3/i5/i7/Pentium/Celeron Processors
Chipset: Intel® H61
Memory: 2*DDR3 1066/1333MHz DIMM
Graphic: Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output: HDMI/VGA ports
Slots: 1xPCIe x16 slot
Storage: 3xSATA 3Gb/s, 1xM.2 Socket (supports 2280 SSD)
LAN: 1x100M （Realtek
Audio: ALC 662 6-channel audio (Realtek)
USB: 6*USB 2.0/2*USB 3.0 port (6 at back panel, 2 at mid-board)
Back Panel I/O
1 x VGA Port
1 x HDMI Port
1 x LAN (RJ45) Port
4 x USB 2.0 Ports
2 x USB 3.0 Ports
3 x flexible audio jacks
Internal I/O
1 x USB 2.0 connector (supports 2*USB 2.0)
3 x SATA 3Gb/s Ports
1 x M.2 Socket (supports 2280 SSD)
2 x 4-pin CPU_FAN/SYS_FAN connectors
1 x 24-pin ATX power connector
1 x 4-pin 12V ATX Power connectors
1 x F_Audio connector
1 x Internal Speaker connector
1 x F_Panel connector
Dimension: 170 x 170mm
